CL IOS LED 30W 4000K ANGLE 36

Product description

  • Symbol
    8730
  • Light source
    LED
  • Maximum wattage
    30W
  • Light sources type
    Integrated
  • Lamp includes source of light
    Yes
  • IP
    IP20
  • Lifetime
    50000h
  • Energy Efficiency Class
    F
  • Warranty
    5 years

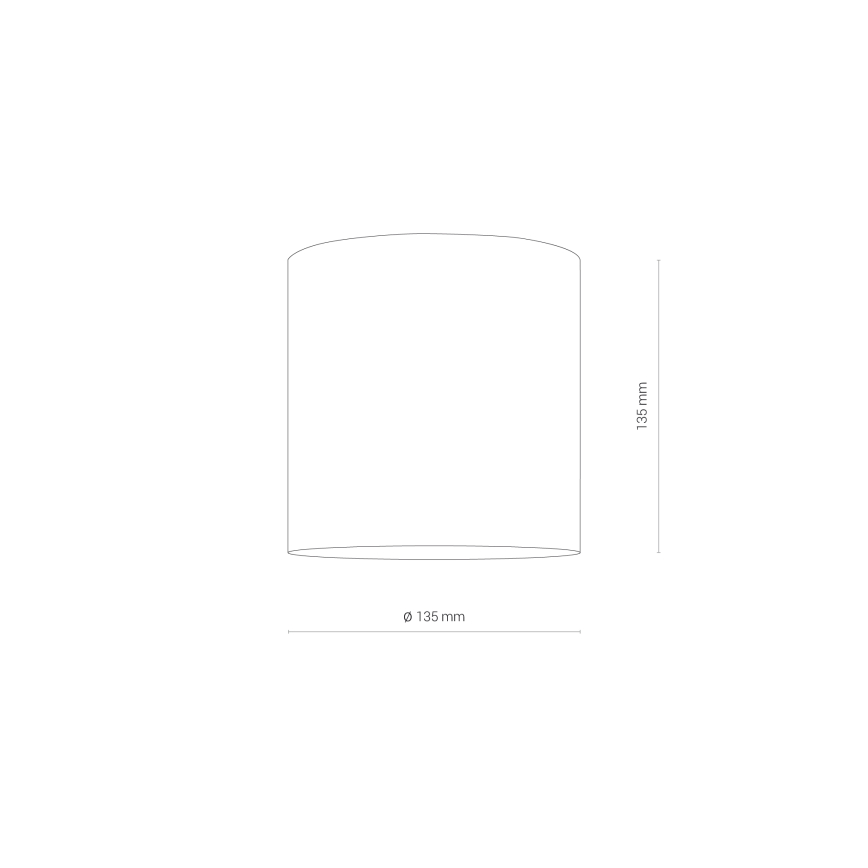

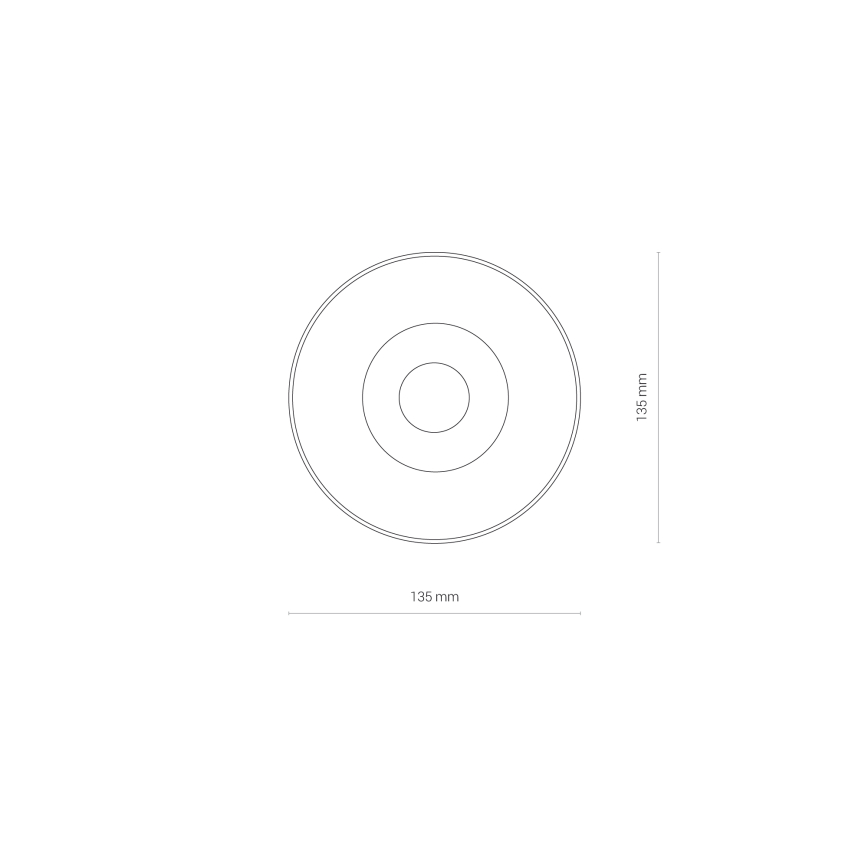

  • Height
    135 mm
  • Width
    135 mm
  • Leading material
    Zinc aluminum alloy
  • Leading colour
    White
  • Colour temperature
    4000K
  • Flux
    2700 lm
  • Beam angle
    36 °
  • CRI
    ≥ 90
  • Frequency
    50/60 Hz
  • Voltage
    ~220-230 V
  • Electrical security class
    I
  • Assembly method
    Direct assembly
  • The product includes a mounting kit
    Yes
