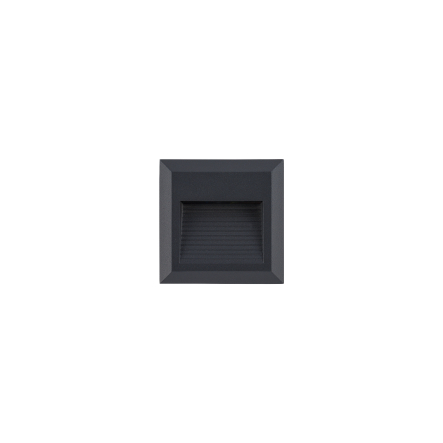

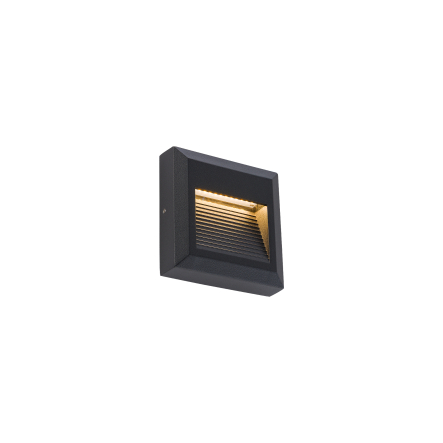

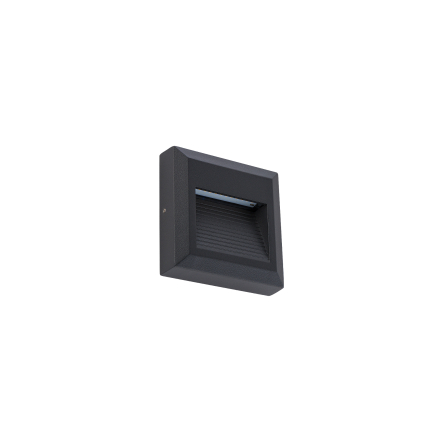

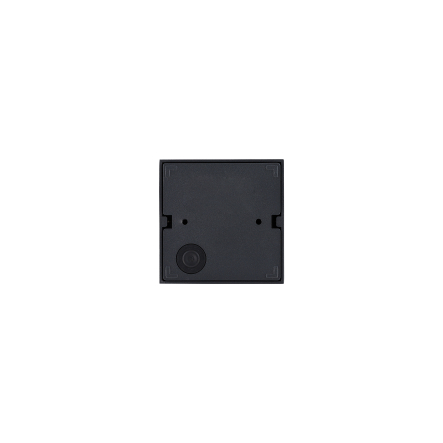

Wall lamp SIDEWALK SQUARE LED

Product description

  • Symbol
    8148
  • Light source
    LED
  • Maximum wattage
    3W
  • Light sources type
    Integrated
  • Lamp includes source of light
    Yes
  • IP
    IP54
  • Lifetime
    20000h
  • Comments
    PF/ Power factory = 0,5.

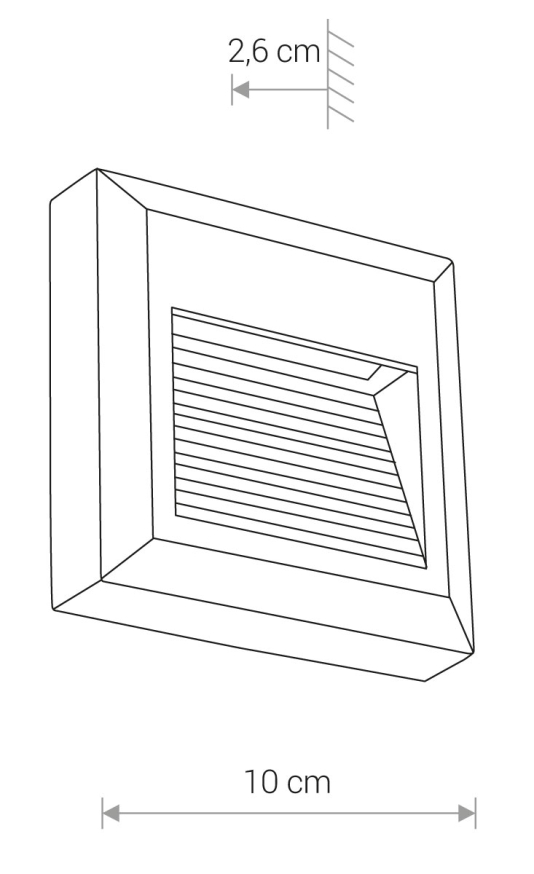

  • Height
    10 cm
  • Width
    10 cm
  • Distance from wall
    2.6 cm
  • Leading material
    Painted aluminum
  • Complementary material I
    Plastic PC
  • Leading colour
    Black
  • Colour temperature
    3000K
  • Flux
    100 lm
  • Beam angle
    120 °
  • CRI
    ≥80
  • Frequency
    50/60 Hz
  • Voltage
    ~220-230V V
  • Electrical security class
    I
  • Assembly method
    Direct assembly
  • The product includes a mounting kit
    Yes
Wall lamp SIDEWALK SQUARE LED

UK Declaration of conformity

Wall lamp SIDEWALK SQUARE LED

Declaration of conformity EC

Wall lamp SIDEWALK SQUARE LED

Assembly instruction

Wall lamp SIDEWALK SQUARE LED

UK Declaration of conformity

Wall lamp SIDEWALK SQUARE LED

Declaration of conformity EC

Wall lamp SIDEWALK SQUARE LED

Assembly instruction
